Our mini excavators are the perfect choice for urban work, small to medium-sized tasks, and terrain that larger machines cannot access. Thanks to their compact size and low weight, they operate without damaging the environment, making them the ideal machinery for both individuals and companies.
. Ideal for restrictions like doors and gates
. Optional side arm swing
. Various attachments options
. Ergonomic controls
Parts and Service ensure stable operation of your equipmentSDJK machines are designed to meet your needs, and most machines come standard with advanced features to help you meet any challenge.
Performance 1
Accessories 2
Custom Made 3
Case 4

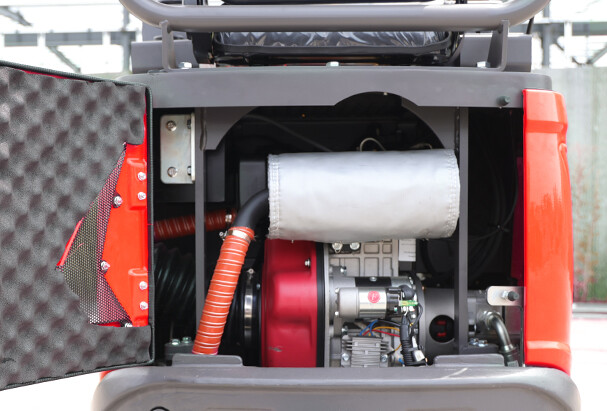

High-performance engine
Equipped with a high-performance engine from a renowned brand, it provides a reliable source of power, injecting lasting momentum into efficient construction. In addition, a variety of engine brands are available for you to choose from.

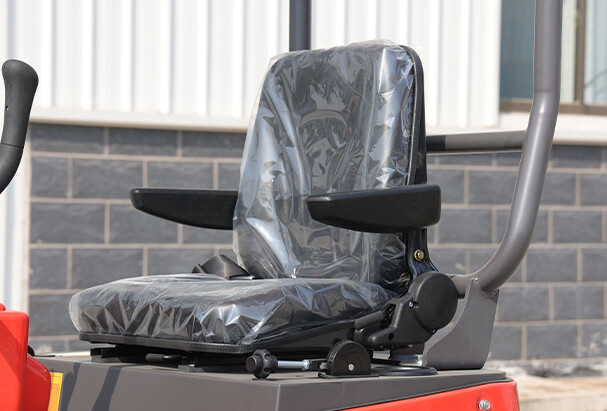

Comfortable environment
The operator environment is crucial when delivering performance and safety, and the seat position is ergonomic, providing excellent visibility in tight spaces while maintaining maximum stability.
Roof and chassis, strong and durable

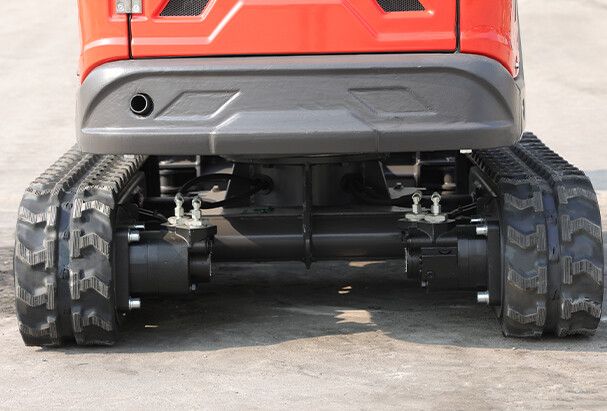

SDJK series crawler excavators are equipped with a telescopic undercarriage system. Its durable undercarriage design helps protect all telescopic components from wear so that they can better cope with various harsh environments and complete the work better.

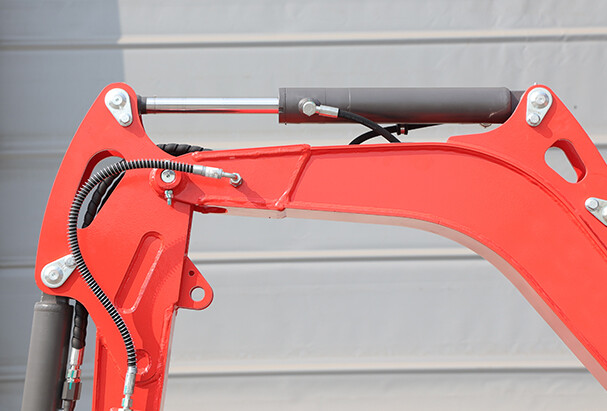

hydraulic system
We understand that high-quality, efficient hydraulic systems are crucial to building market-leading excavators. Kubota's engines, pumps, and hydraulic systems are perfectly synchronized to deliver maximum power and faster work cycles, enabling users to achieve greater productivity simultaneously.
Versatility and Industry-Exclusive Features
The SDJK series mini excavators feature a third function, allowing the use of over ten auxiliary accessories, including quick couplers, hydraulic hammers, log grapples, rakes, augers, milling machines, trenching buckets, and grading buckets.
One-stop comprehensive solution
We can accept OEM customization services, including providing LOGO customization, color customization, cab, product catalog, engine customization and various accessories combinations, and design or improve according to the actual needs and uses of customers.
Our friends, our partners
SPECIFICATIONS
Characteristics
Unit
Model
JKW-12
Engine
KOOP192FA/Briggs&Stratton/Kubota D722
kW
Power
7.6/10.07/10.2
m³
Bucket Capacity
0.022
km/h
Maximum Driving Speed
1.2
MPa
Work Pressure
16
L
Hydraulic Tank Capacity
18
L
Engine Oil Capacity
1.65
L
Fuel Tank Capacity
5.5
L
Maximum Climbing Ability
30°
Maximum Digging Force
6.5
kN
Machine Size(L*W*H）
2870*930*2285
mm
Maximum Digging Height
2840
mm
Maximum Unloading Height
2082
mm
Maximum Digging Depth
1670
mm
Maximum Vertical Arm Digging Depth
1605
mm
Maximum Digging Distance
3080
mm
Minimum Turning Radius Of Front End
1190
mm
Maximum Digging Ground Distance
3020
mm
Overseas Warehouses
have official overseas warehouses in the US and Italy, allowing you to pick up your products nearby, providing you with a one-stop, efficient procurement solution.
Technical Support
All machine components are manufactured in our own factories according to strict procedures. Over 20 quality inspectors conduct a full inspection before shipment, and a complete maintenance manual is provided. Our multilingual technical team and local service locations offer remote diagnostics, fast parts delivery, and other support services.
Certification Guarantee
Complete international certifications such as CE/ISO/TUV ensure hassle-free customs clearance in your destination country.
After-Sales Service
Strict quality control, one-year warranty, one-year free parts replacement, and 24/7 online after-sales technicians provide technical guidance.
Flexible Shipping Options
We support a variety of shipping methods including DDP/ DAP/ DAT/ CIP/ CPT/ CIF/ CFR/ FOB/ FAS/ FCA/ EXW.
Global Distributor Program
Zero barriers to entry: Whether you're a startup or an established distributor, no qualification verification is required. As long as you're passionate about expanding your market, we offer equal opportunities for partnership.
