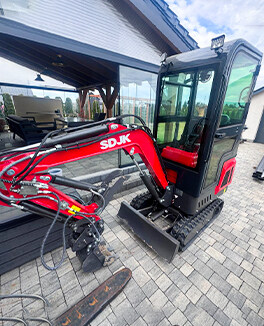

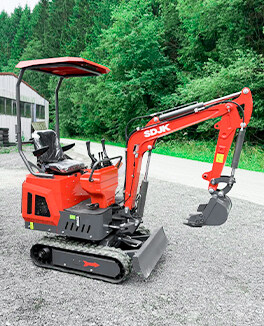

Our mini excavators are the perfect choice for urban work, small to medium-sized tasks, and terrain that larger machines cannot access. Thanks to their compact size and low weight, they operate without damaging the environment, making them the ideal machinery for both individuals and companies.
. Ideal for restrictions like doors and gates
. Optional side arm swing
. Various attachments options
. Ergonomic controls
Parts and Service ensure stable operation of your equipmentSDJK machines are designed to meet your needs, and most machines come standard with advanced features to help you meet any challenge.
Performance 1
Accessories 2
Custom Made 3
Case 4

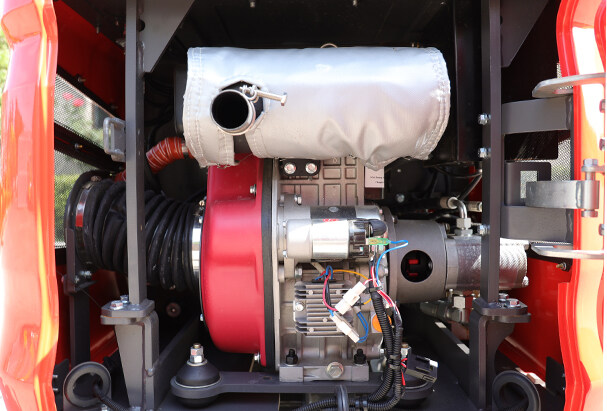

High-performance engine
Equipped with a high-performance engine from a renowned brand, it provides a reliable source of power, injecting lasting momentum into efficient construction. In addition, a variety of engine brands are available for you to choose from.
Comfortable environment
The operator environment is crucial when delivering performance and safety, and the seat position is ergonomic, providing excellent visibility in tight spaces while maintaining maximum stability.
Roof and chassis, strong and durable
SDJK series crawler excavators are equipped with a telescopic undercarriage system. Its durable undercarriage design helps protect all telescopic components from wear so that they can better cope with various harsh environments and complete the work better.
hydraulic system
We understand that high-quality, efficient hydraulic systems are crucial to building market-leading excavators. Kubota's engines, pumps, and hydraulic systems are perfectly synchronized to deliver maximum power and faster work cycles, enabling users to achieve greater productivity simultaneously.

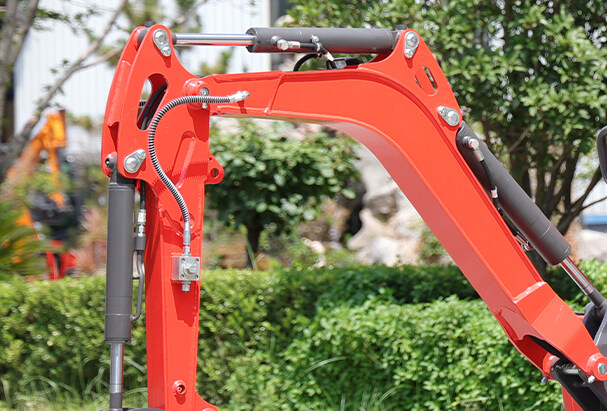

Versatility and Industry-Exclusive Features
The SDJK series mini excavators feature a third function, allowing the use of over ten auxiliary accessories, including quick couplers, hydraulic hammers, log grapples, rakes, augers, milling machines, trenching buckets, and grading buckets.
One-stop comprehensive solution
We can accept OEM customization services, including providing LOGO customization, color customization, cab, product catalog, engine customization and various accessories combinations, and design or improve according to the actual needs and uses of customers.

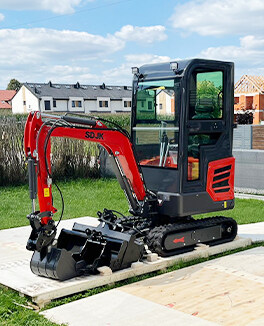

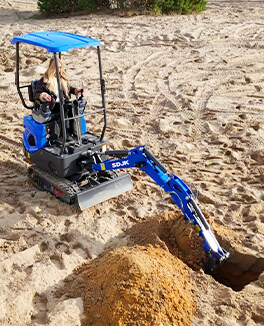

Our friends, our partners
SPECIFICATIONS
Characteristics
Unit
Model
JKW-10
Operating Weight
1000
KG
Bucket Capacity
0.022
m³
Type of Working Device
Backhoe
Engine
Briggs & Stratton Engine(10 KW)
Rated output power/speed
7.6/3000
kw/rpm
Maximum Driving Speed
1.2
km/h
Slewing Speed
9
rpm
Maximum grade ability
30°
Maximum digging force
6.5
Kn
Hydraulic oil tank capacity
13
L
Fuel tank capacity
5.5
L
Ground maximum digging radius
2940
mm
Maximum digging radius
3030
mm
Maximum digging depth
1725
mm
Maximum digging height
2490
mm
Maximum Dump height
1745
mm
Maximum vertical digging depth
1655
mm
Minimum slewing radius
1490
mm
Maximum lifting height of bulldozing blade
170
mm
Maximum digging depth of bulldozing blade
240
mm
Overseas Warehouses
have official overseas warehouses in the US and Italy, allowing you to pick up your products nearby, providing you with a one-stop, efficient procurement solution.
Technical Support
All machine components are manufactured in our own factories according to strict procedures. Over 20 quality inspectors conduct a full inspection before shipment, and a complete maintenance manual is provided. Our multilingual technical team and local service locations offer remote diagnostics, fast parts delivery, and other support services.
Certification Guarantee
Complete international certifications such as CE/ISO/TUV ensure hassle-free customs clearance in your destination country.
After-Sales Service
Strict quality control, one-year warranty, one-year free parts replacement, and 24/7 online after-sales technicians provide technical guidance.
Flexible Shipping Options
We support a variety of shipping methods including DDP/ DAP/ DAT/ CIP/ CPT/ CIF/ CFR/ FOB/ FAS/ FCA/ EXW.
